  • Overview
  • Specs

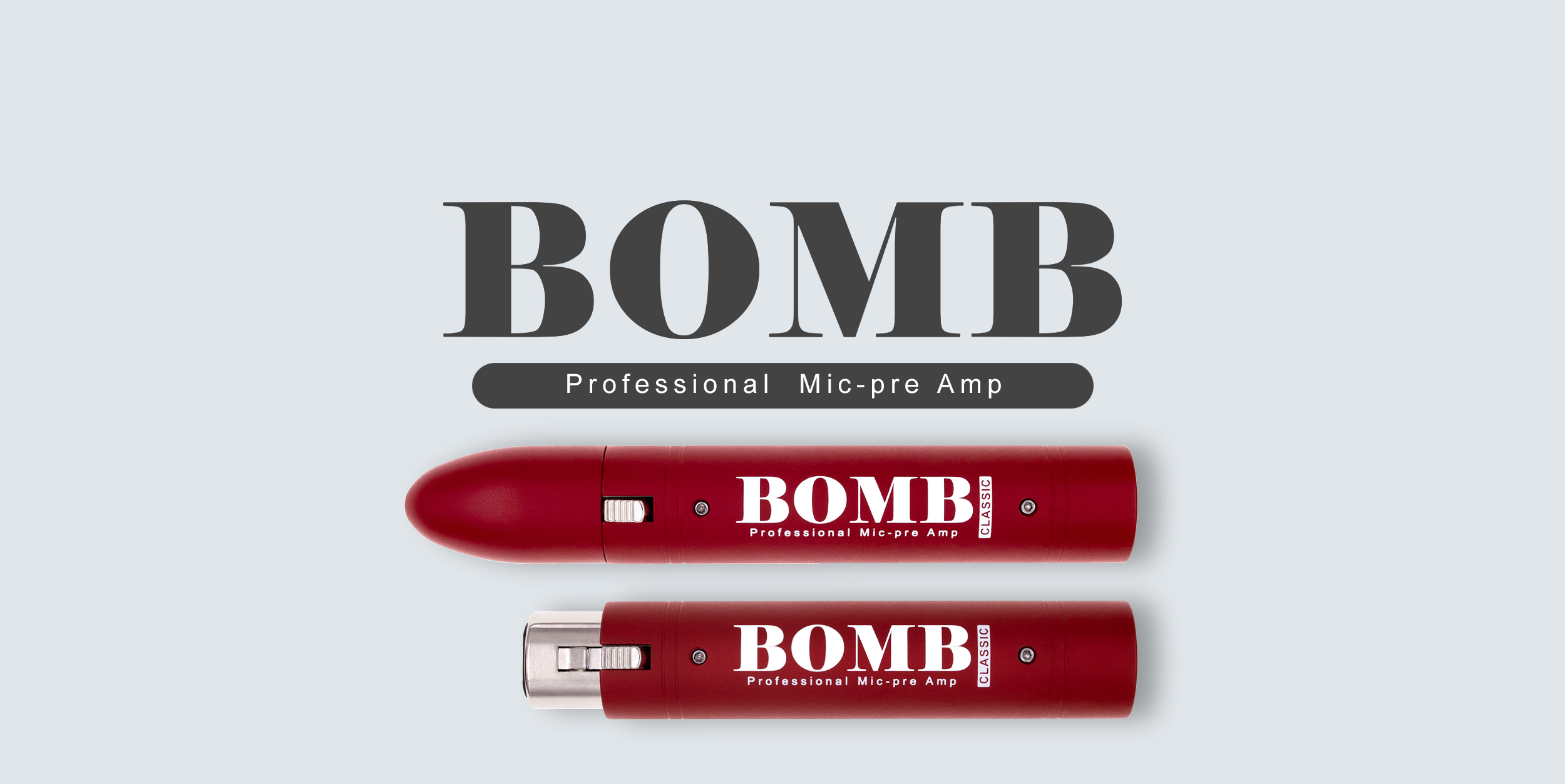

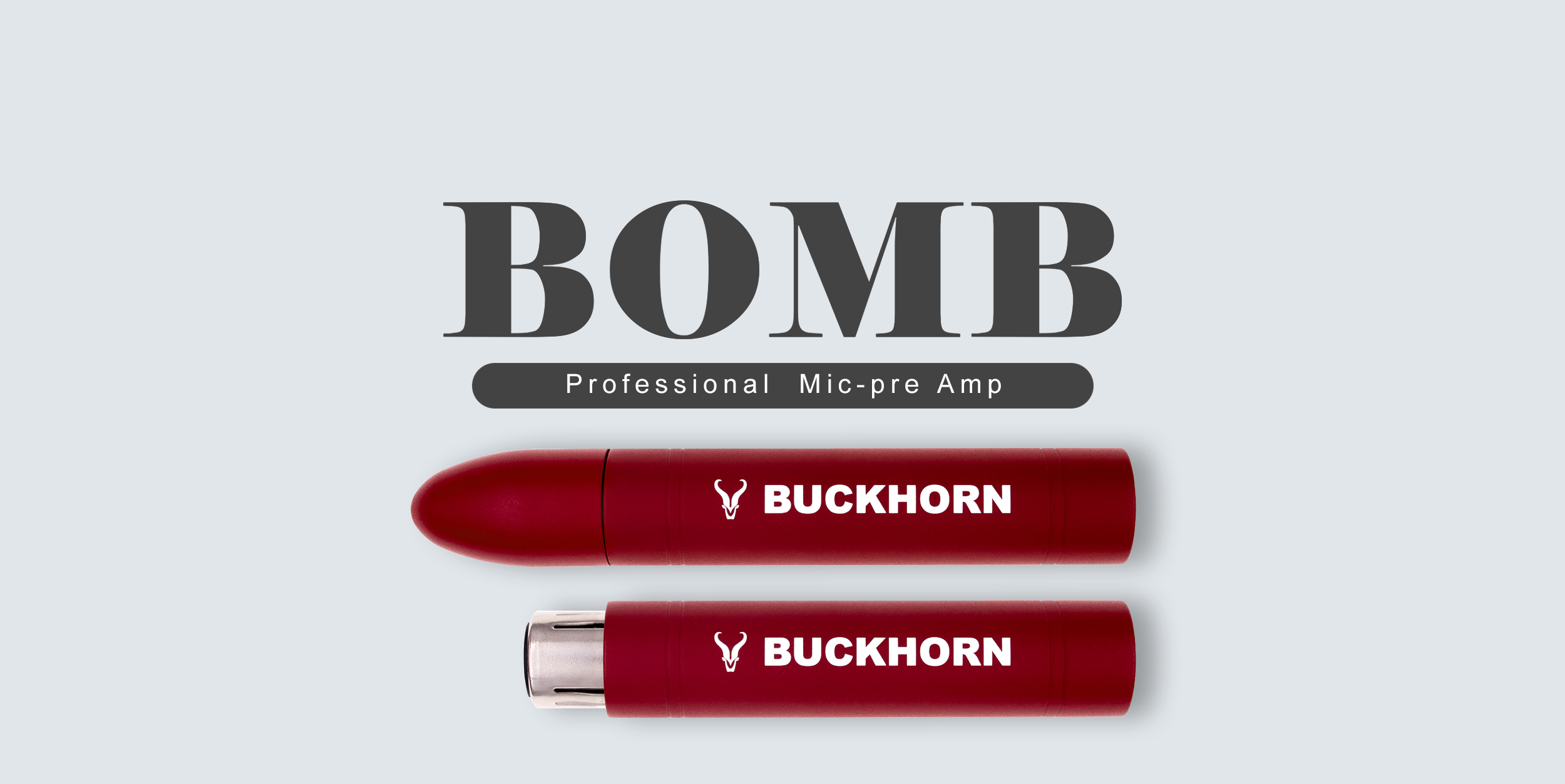

Overview

Add 28dB effective gain for dynamic microphone

Low noise circuit

Balance signal in and out

FET amplifier brings the sound effect of electron tube

In line XLR socket

The metal shell is strong and durable

The 48V power supply drive circuit does not need additional power supply (Bomb use XLR connector's 48V supply)

Professional circuit design team from Qualcomm

Work with Mixer / Soundcard / Recorder

Connect  condenser microphone ,need an additional 48V



Specs

Input Dynamic Range

102dB (A-weighted)

Output Noise(EIN)

< 6uV

Input Gain Range

 28dB

Output Max Level

8.3dBV/2.6V

Output Frequency Response

 20Hz – 20kHz +/- 0.1dB

Output THD+N

 <0.05% @1KHz

Output Impedance

200Ω

Power Supply

48V
