Overview
Professional Recording Interface
Type C USB 2.0
Driver Sync Clock Technology innovated by Buckhorn Driver team
Buckhorn VSC(Virtual Sound Channel) Tech
Sound Effect With Remote
Master Type C Support 2 Channels ADC And DAC, 2 Channels Digital From OTG USB
OTG Type C Can Connect To Phone Or PC witch 2 Digital Channels
Professional Circuit Team From Qualcomm Analog Design Team
Free get Music King Podcast Mixer
Features

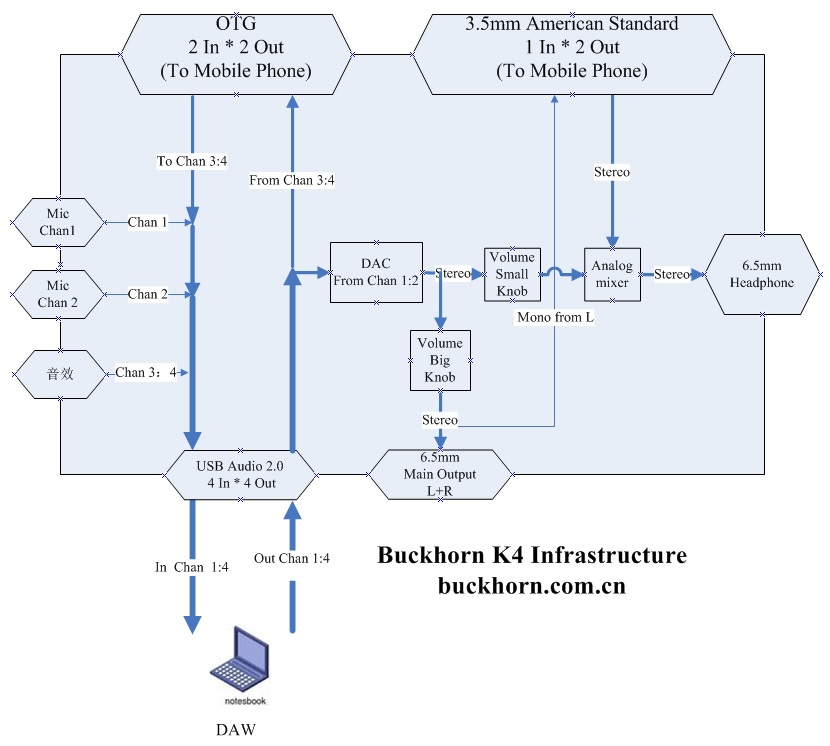

2 IN 2 OUT Anolog + 2 IN 2 OUT OTG Digital
LCD Screen With Meter
6 in 6 out Buckhorn VSC(Virtual Sound Channel) channels（Windows Version）
Send Mono Channel To Mobile Phone Use 3.5 Connecter
Mobile phone can send stereo to 3.5 jack only for headphone monitor(Main Big Knob setup to 9 o'clock)
WDM ASIO Two-way transmission by virtual channels（Windows Version）
24bit Sample transmission
ASIO2.0 drivers work from 32 Samples buffer（Windows Version）
44.1KHz-192KHz -（Master USB）
44.1KHz-48KHz （OTG USB）
High Speed USB Audio 2.0 Connector
Type C Power Supply
Working in IOS 9 10 11 12 /Android 7 8 9/ Windows 7 8 10 / Mac OS 10.10 10.11 10.12 10.13
Tech Specs
| FREQUENCY RESPONSE: |
20HZ–20KHZ+/-0.04 DB |
| THD+N: |
-94.5 |
| EQUIVALENT INPUT NOISE（EIN） |
<-130DB |
| MAX INPUT LEVEL |
+4DBU |
| NOISE |
-103DB（A-WEIGHTED） |
| SIGNAL TO NOISE RATIO |
103DB（A-WEIGHTED） |
| GAIN RANGE |
+1DB TO +46DB |
| MAX INPUT LEVEL (LINE IN) |
+4DBU |
| OUTPUT IMPEDANCE |
<10Ω |
| POWER OUTPUT INTO 150Ω |
15mW |
| POWER OUTPUT INTO 50Ω |
28mW |
| CLOCK SOURCES |
INTERNAL CLOCK ONLY |
| A/D DYNAMIC RANGE |
114DB |
| D/A DYNAMIC RANGE |
114DB |
| SUPPORTED SAMPLE RATES |
44.1KHZ 48KHZ 88.2KHZ 96KHZ 176.4KHZ 192KHZ |
