Overview

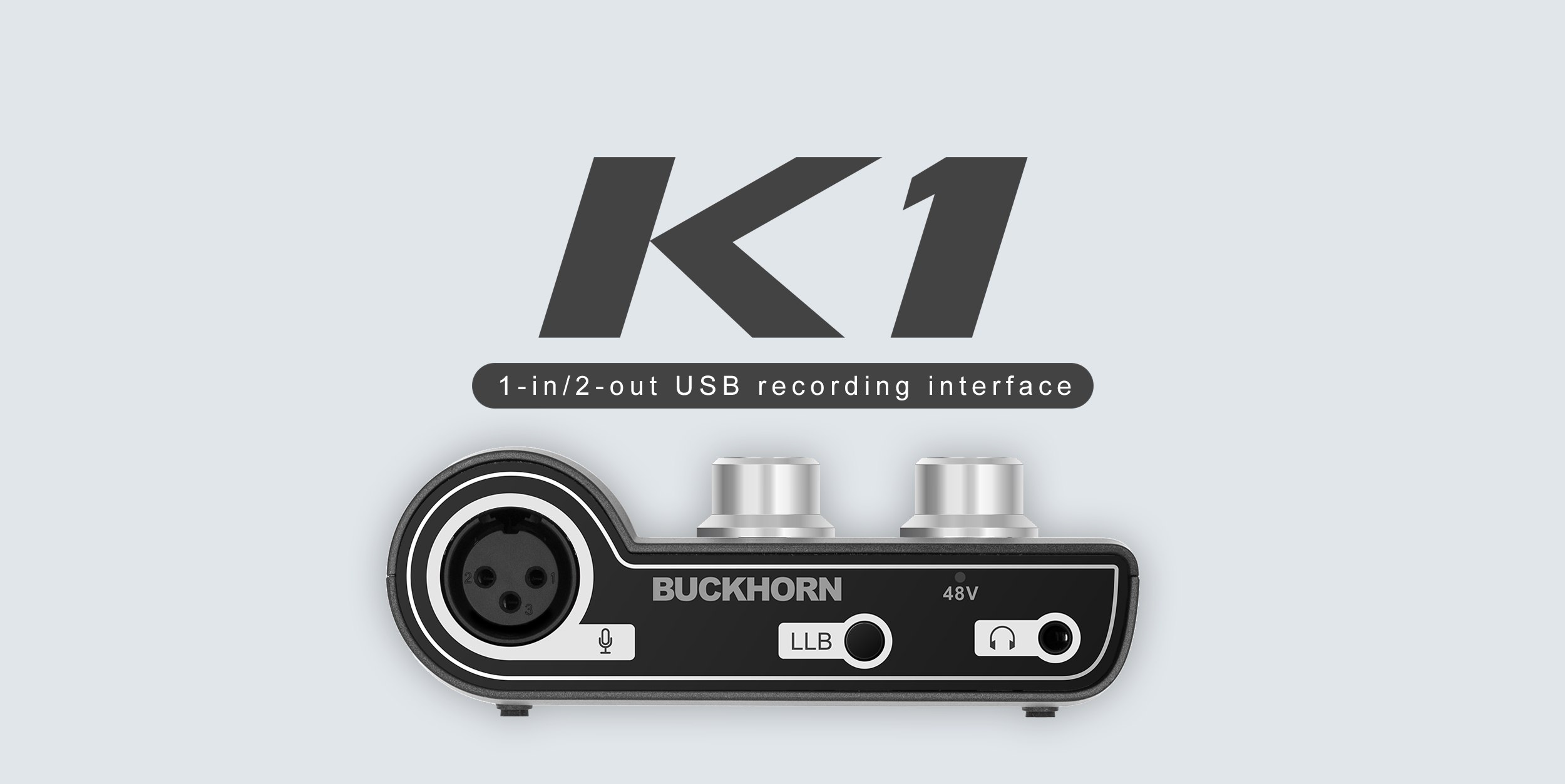

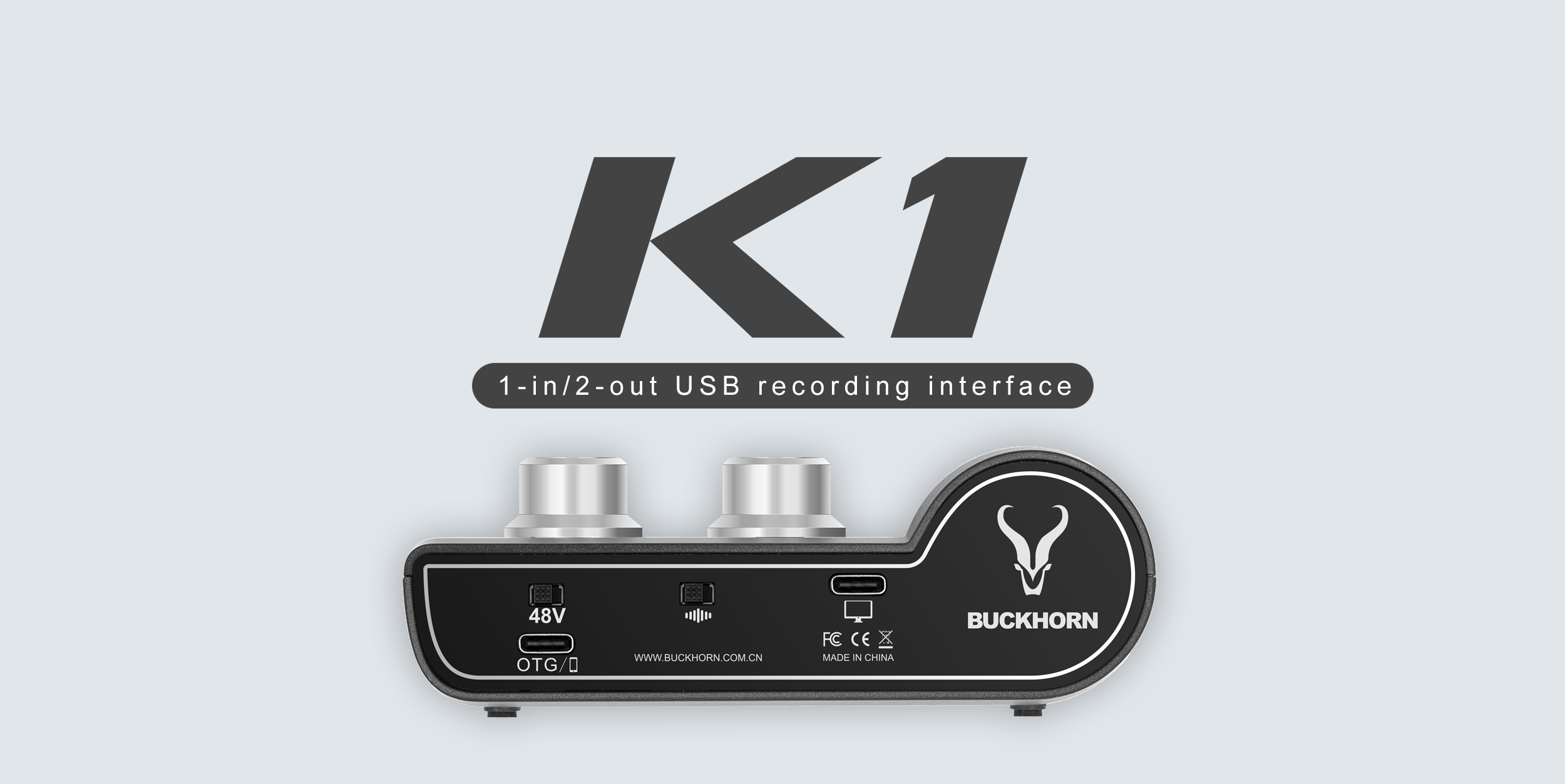

Professional Recording Interface
Driver Sync Clock Technology innovated by Buckhorn Driver team
Buckhorn VSC(Virtual Sound Channel) tech
Professional Circuit Team from Qualcomm Analog design team
Free get Buckhorn Podcast Mixer
Features
1 in 2 out physical channels
Ring Level Meter (Green: < - 6dB; Red&Green: >- 6dB; Red: 0dB)
6 in 6 out Buckhorn VSC(Virtual Sound Channel) channels（Windows Version）
Send mono channel to mobile phone
Mobile phone can send stereo to 3.5 jack only for headphone monitor(Main Big Knob setup to 9 o'clock)
WDM ASIO Two-way transmission by virtual channels（Windows Version）
24bit Sample transmission
44.1KHz\48KHz\88.2KHz\96KHz\176.4KHz\192KHz support
ASIO2.0 drivers work from 32 Samples buffer（Windows Version）
High Speed USB Audio 2.0 Connector
Powered by USB or MicroUSB(only for Power)
Working in IOS 9 10 11 12 /Android 7 8 9/ Windows 7 8 10 / Mac OS 10.10 10.11 10.12 10.13
Tech Specs
| FREQUENCY RESPONSE: |
20HZ–20KHZ+/-0.04 DB |
| THD+N: |
-93 |
| EQUIVALENT INPUT NOISE（EIN） |
<-114DB |
| |
|
| MAX INPUT LEVEL |
+4DBU |
| |
|
| Micphone |
|
| NOISE |
-98 DB（A-WEIGHTED） |
| SIGNAL TO NOISE RATIO |
98DB（A-WEIGHTED） |
| GAIN RANGE |
35DB TO +80DB |
| MAX INPUT LEVEL (LINE IN) |
+4DBU |
| |
|
| OUTPUT IMPEDANCE |
<10Ω |
| POWER OUTPUT INTO 150Ω |
15mW |
| POWER OUTPUT INTO 50Ω |
28mW |
| |
|
| DIGITAL PERFORMANCE |
|
| CLOCK SOURCES |
INTERNAL CLOCK ONLY |
| A/D DYNAMIC RANGE |
114DB |
| D/A DYNAMIC RANGE |
114DB |
| SUPPORTED SAMPLE RATES |
44.1KHZ 48KHZ 88.2KHZ 96KHZ 176.4KHZ 192KHZ |
